$ pip install pygame

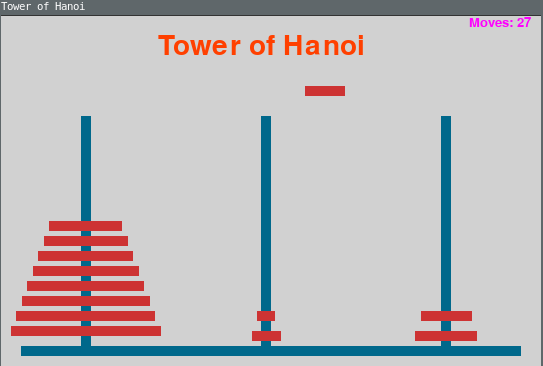

$ python hanoi.py 13

""" The tower of Hanoi
    _________________________________________________
    Sorry for my bad english!
    Writted with python and pygame module.
    Note : this program initially find a list of movements
    for the problem and then moves the disk in order of the list
    of solution . Therefore you must execute the program
    with a suitable n disk.
    If we had n disks, the movements for solving the problem is
    (2 ^ n) - 1 .
    I advice you that you examine the program with maximum
    of n = 15 .
    _________________________________________________

    Programmer  : Mohsen Safari
    Email       : safari.tafreshi@gmail.com
    Website     : dokaj.ir
"""

import pygame, sys, inspect

# Number of the disk in tower of hanoi
N = 5

# Number of ticks in one second
FREQ = 500

# If user has provided disk number in command line use it
if len(sys.argv) == 2 and int(sys.argv[1]) >= 3:
    N = int(sys.argv[1])
    if N > 16:
        print("Number of disk is too high.")
        print("If you are sure change code in line 32")
        sys.exit(1)


pygame.init()

BGCOLOR        = (209, 209, 209)
BARSCOLOR      = (  0, 104, 139)
DISKSCOLOR     = (205,  51,  51)
MOVEFONTCOLOR  = (255,   0, 255)
TITLEFONTCOLOR = (255,  64,   0)

SIZE = WIDTH, HEIGHT = (540, 350)

# A counter for counting number of disk moves.
number_of_moves = 0

BASICFONT  = pygame.font.SysFont("freesansbold", 20)
BIGFONT    = pygame.font.SysFont("freesansbold", 42)

SCREEN = pygame.display.set_mode(SIZE)
pygame.display.set_caption("Tower of Hanoi")

clock = pygame.time.Clock()

# Movements! in this list we store the moves of the disks
m = []

# horizonatl bar height and disk height
HBH = DH = 10

# Distance between two disk
DBD = 15

# Static elements: the 3 vertical bars and one horizental bar
S = [0, 0, 0, 0]

# s[3] is the horizontal bar
S[3] = pygame.Rect(20, HEIGHT - 20, WIDTH - 40, HBH)

# s[0] and s[1] and s[2] are the vertical bars
for i in range(0, 3):
    S[i] = pygame.Rect(WIDTH / 3 * (i + 1) - 100, 100 , 10, S[3].top - 100)

# active_elements! each sublist show the disks in the corresponding bar
a = [ [], [], [] ]


# Adding all disks to a[0]
# For a[0] top offset the largest disk in first vertical bar(=S[0])
# is the top offset of the horizental bar(=S[3])
top =S[3].top - HBH

# First disk width
dw = 150

# Reduce disk width.
# Next disk width must be "rdw" smaller than this disk
rdw = 30

while dw / N <= rdw :
    rdw = rdw - 1
    continue

for i in range(N) :
    a[0].append(pygame.Rect(S[0].centerx - dw / 2, top - HBH , dw, DH))
    top = top - DH - 5
    dw = dw - rdw
# end of the initial positioning!


# Show all elements on the screen.
# The content of the lists bellow are Rect and have
# their coordiantes and width and height
# We simply show them on the screen.
def update_screen() :
    # check event queue for pygame.QUIT event!
    check_events()

    SCREEN.fill(BGCOLOR)
    for i in range(len(S)) :
        pygame.draw.rect(SCREEN, BARSCOLOR, S[i], 0)

    for i in range(len(a)) :
        for j in range(len(a[i])) :
            pygame.draw.rect(SCREEN, DISKSCOLOR, a[i][j], 0)

    # Print Number of moves on screen
    text = "Moves: {0}".format(number_of_moves)
    surf = BASICFONT.render(text, True, MOVEFONTCOLOR)
    rect = surf.get_rect()
    rect.topleft = (WIDTH - rect.width - 10, 0)
    SCREEN.blit(surf, rect)

    # Print Title of program on screen
    surf = BIGFONT.render("Tower of Hanoi", True, TITLEFONTCOLOR)
    rect = surf.get_rect()
    rect.center = (S[1].left, 30)
    SCREEN.blit(surf, rect)

    pygame.display.update()


def move() :
    # Note that in this place hanoi towers movements are completely calculated!
    # and these movements are stored in list "m".
    # Now we take each move and then move the disk to its destination bar.
    # Also note that in this function we only change the positions of
    # the disk in the screen and then call the update_screen function.
    # "update_screen" function show all elements on
    # screen. all elements are lists: S and a

    # A counter for counting number of disk moves.
    global number_of_moves

    for i in range(len(m)) :
        # m[i][0] is starting bar and i is a number in (0,1,2)
        init = m[i][0]

        # m[i][1] is the destination bar and i is a number(0,1,2)
        dest = m[i][1]

        if len(a[dest]) != 0:
            dest_y = a[dest][-1].top - DBD # DBD: distance between disks
        else :
            dest_y = S[3].top - HBH # HBH: horizontal bar height

        # moves the disk to the top of the its bar!
        while a[init][-1].top > S[init].top - 30:
            clock.tick(FREQ)
            a[init][-1].move_ip([0, -1])
            update_screen()

        # Destination bar is at left of current bar or right of it????
        if a[init][-1].centerx < S[dest].centerx:
            # Destination bar is at right of current bar
            while a[init][-1].centerx < S[dest].centerx:
                clock.tick(FREQ)
                a[init][-1].move_ip([1,0])
                update_screen()
        else:
            # Destination bar is at the left of current bar
            while a[init][-1].centerx > S[dest].centerx:
                clock.tick(FREQ)
                a[init][-1].move_ip([-1,0])
                update_screen()

        # Move disk down in the destination bar
        while a[init][-1].centery < dest_y :
            clock.tick(FREQ)
            a[init][-1].move_ip([0, 1])
            update_screen()

        # Remove the moved disk from the its location
        # in bar "init" and add it to the dest bar
        a[dest].append(a[init].pop())
        number_of_moves += 1

# The hanoi towers function itself!
# All moves of the disks will be stored in the list 'm'
def hanoi(n, b0, b1, b2) :
    if n == 1 :
        # Store the move in the list m
        m.append([b0, b2])
    else :
        hanoi(n - 1, b0, b2, b1)
        # Store the move in the list m
        m.append([b0, b2])
        hanoi(n - 1, b1, b0, b2)

# Function for exit from the application
def check_events() :
    # Exit with click on close button
    for event in pygame.event.get() :
        if event.type == pygame.QUIT:
            sys.exit()

        # Exit with "Escape" button or "q" button
        if event.type == pygame.KEYDOWN:
            if event.key == pygame.K_ESCAPE or event.key == pygame.K_q:
                sys.exit()

# Info about this program
def print_program_info():
    print("Hanoi towers with pygame")
    print("------------------------")
    print("Programmer   : Mohsen Safari")
    print("Website      : dokaj.ir")

if __name__ == "__main__":
    # print information on console about this program
    print_program_info()

    # move hanoi towers program
    hanoi(N, 0,1, 2)

    # Now hanoi profram is solved. All the moves are in "m" variable
    # "m" means "moves"! In function we move all disks to its destination
    move()

    # Program is done. wait for quit event.
    while 1 :
        check_events()
